ALGO 1196 Satellite Horn Speaker for use with 8196 Only
Product details
| Management number | 215127766 | Release Date | 2026/04/12 | List Price | $36.00 | Model Number | 215127766 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||

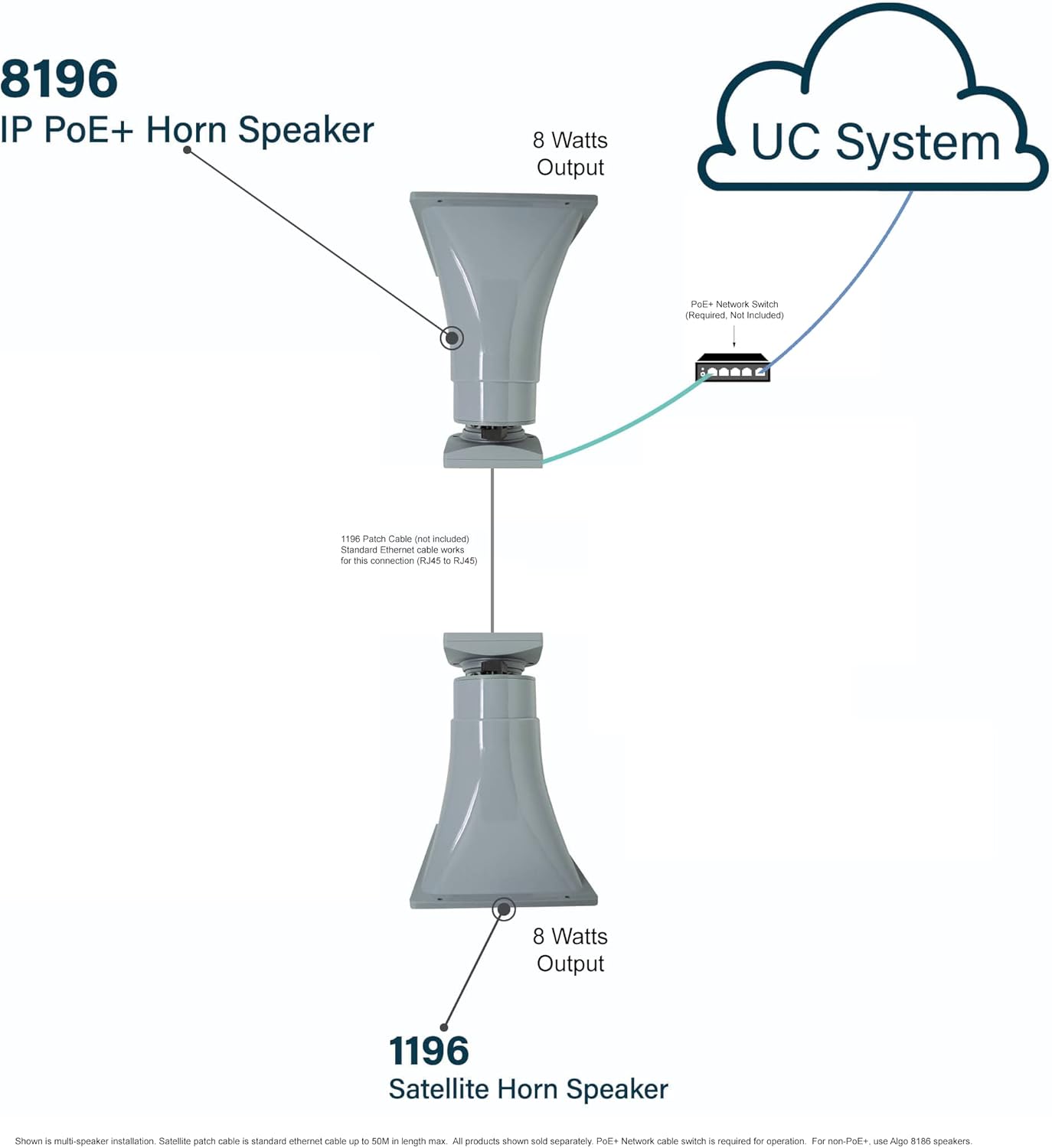

This product is designed specifically for use with the Algo 8196 (sold separately, not included). For expanded coverage, up to three Algo 1196 satellite speakers may be connected to an 8196 speaker sharing the available 16W of audio power. The Algo 1196 Satellite speaker when used with the Algo 8196 IP PoE+ Horn Speaker can provide significant savings when combined using up to three (3) 1196 satellite speakers. Satellite speakers are connected to the 8196 in a daisy chain fashion using CAT5/CAT6 standard patch cables (wired directly to each other through a daisy chain only, not through network). Each 1196 Satellite Speaker attached is detected by the 8196 IP Speaker automatically and can be monitored for connectivity. The number of attached satellite speakers is displayed in the 8196 web GUI and also visible in the 8300 Supervision Controller, if deployed, sold separately. Identical in appearance and acoustical output to the 8196 IP speaker, the satellite speakers can provide ambient noise response based on the 8196 microphone noise detection and by default automatically adopt the zone and volume settings of the 8196 speaker. The installer should be familiar with configuration and programming of Voice over IP devices via web-based graphical user interface or provisioning. Requires Power over Ethernet. If PoE is not available, use PoE Injector. Controller must be installed indoors, door station is indoor/outdoor rated. A basic understanding of computer networking and Voice over IP experience is required. See manufacturer's website for specifications, new features, and required firmware updates. Images shown may included optional components not included.
- Designed specifically for use with the Algo 8196 (sold separately) [NOT for use with 8186]
- Identical in appearance and acoustical output to the 8196 IP speaker - Indoor / Outdoor
- Daisy chain up to three (3) satellite speakers to the primary 8196 IP speaker
- Ideal for speaker clusters, pole mount, or larger dispersion field requirements.
- Requires Algo 8196 SIP PoE+ SIP speaker and patch cables (not included, purchase separately)
| Brand | ALGO |
|---|---|
| MP3 player | No |
| Model Name | 1196 Satellite Horn Speaker |
| Manufacturer | Algo Products |
| Model Number | 1196 |
| Power Source | Corded Electric |
| Speaker Type | Satellite |
| BuiltIn Media | Speaker only |
| Is Waterproof | True |
| Mounting Type | Wall Mount |
| Warranty Type | Limited |
| Control Method | Voice |
| Controller Type | Voice Control |
| Antenna Location | voice control systems, speaker clusters, larger dispersion field requirements |
| Audio Driver Type | Dynamic Driver |
| Audio Output Mode | Horn Speaker |
| Compatible Devices | Algo 8196 IP Speaker |
| Wireless Technology | No Wireless Communication Technology |
| Connectivity Protocol | Ethernet |
| Water Resistance Level | Not Water Resistant |
| Connectivity Technology | Ethernet |
| Number of Audio Channels | 1.0 |
| Specific Uses For Product | Large rooms, Outdoor areas |
| Speaker Maximum Output Power | 16 Watts |
| Subwoofer Connectivity Technology | Wired |
